As I was going to use my cMoyBB on a regular basis, I was curious as to which op-amp to use for maximum battery life.
Of course I can search the datasheets, but what's the fun in that. Also, I want to try to find clues that can tell me whether my OPA627BP's are fake.
LM4562 10.1mA
OPA-Earth 49.1mA
OPA627 14.0mA for two
LM6172 >60mA (error)
OPA2604 10.0mA
OPA2227 7.3mA
JRC4580 5.1mA
OPA2132 8.8mA
Yup, the numbers are as the datasheets say, mostly. LM6172's is over 60mA and increasing, and it was getting warm fast. It still has a very high DC-offset (>100mV!) despite the unity-gain mod - LM4562 dropped from 20 to 2.3, JRC4580 from 40+ to 10+, and OPA2227 from... I forgot from how high/low, but now it is 0.1 and 0.3mV.
OPA627 taking 7mA each as according to the datasheet, low DC-offset of... 0.0 and 0.0mV which was expected when reading the datasheet too. Things are looking better for these unknown-authenticity chips, some THD and load tests (to test the 45mA output current) later will wrap things up.
Subjective listening yielded good results too - particularly the bass, which is powerful yet clean, as though all the other op-amps I've tried so far have difficulty driving the 32-ohm MS1 (I haven't tried high-current ones like AD8397. And the background instruments come out more too. The main instruments are also more forward and wider but less deep soundstage which is not to my liking.
I wasn't specifically listening for anything nor having any expectations so it pleasantly surprised me. But hey, I've demonstrated to myself that I can hear tweaks even before doing them, so take these results with a pinch of salt. I've also failed a recent "Name that op-amp in the dark" test, although I have more confidence of identifying this OPA627 but these are not possible to do that test with.
Well, these chips are looking to look like the real stuff, pity I sold off two pairs cheaply at SGD25 per pair because I wasn't sure if they were real.
W A R N I N G !
W A R N I N G !
This page is full of non-facts and bullsh!t, (just like the internet and especially forums and other blogs), please do not believe entirely without exercising your intellect. Any resemblance to real things in reality is purely coincidental. You are free to interpret/misinterpret the content however you like, most likely for entertainment, but in no case is the text written on this blog the absolute truth. The blog owner and Blogger are not responsible for any misunderstanding of ASCII characters as facts. *cough* As I was saying, you are free to interpret however you like. *cough*
Tuesday, March 29, 2011
Sunday, March 27, 2011
Random thought: Amplifier output power ratings, 4Ω vs 8Ω
Typing the Ω symbol reminded me that I have a lab report to complete. It's week 9 yet I feel like zero hour.
Many if not most amplifiers specify max output power ratings at 4Ω or 6Ω for those that cannot handle the high current, rarely 8Ω. Amplifiers and limited by both the voltage their power supplies provide and the current their output stage can put out. However, in marketing speak amplifiers are always be able to source or sink 1000A of current for a nanosecond. Hence current is not a problem and output power is limited by voltage instead. Since V²/R, the smaller the R, the bigger the power.
Hence the Tripath TP2050 power stage chip is a peculiarity. It is highly current-limited such that it is rated at 8Ω in the datasheet (although it is also mentioned that the minimum it can go is 6Ω).
However, there is something interesting about this chip - in stereo mode, it is a pair of bridged amplifiers. Change some resistors and switch it to mono mode, the two bridged outputs combine together to form a 100W into 4Ω amp that is capable of twice the current. Hooray for FET output stage. These numbers also suggest that the max power into 8Ω in this mode is still 50W, but hey extra headroom is always nice.
Now, this thing has my interest because some completed product amp manufacturers misuse those numbers, dunno if it is by their marketing department, or a careless designer. 100W and 50W output powers were quoted with different combinations of number of amp chips and load impedance. You can see that some combinations don't work.
Official specs for this chip is 50W into 8Ω in stereo mode and 100Ω into 4Ω in mono mode. But nothing was mentioned about power into 4Ω in stereo mode.
So a few calculations using Ohm's Law later,
Current limited = fixed current = power proportional to resistance = half of power into 8Ω = 25W
Well, that is veryyyyyyyy small compared to 50W.
For a few seconds it didn't make sense, until I remember the other form of the formula P = I²R. In paralleled mode it has twice the current capacity. Hence four times the power.
Well, the amount of thinking that was carried out would take just a few seconds, but this reminded me that a good amplifier should never be current-limited. And amplifier power ratings are screwed up.
Many if not most amplifiers specify max output power ratings at 4Ω or 6Ω for those that cannot handle the high current, rarely 8Ω. Amplifiers and limited by both the voltage their power supplies provide and the current their output stage can put out. However, in marketing speak amplifiers are always be able to source or sink 1000A of current for a nanosecond. Hence current is not a problem and output power is limited by voltage instead. Since V²/R, the smaller the R, the bigger the power.
Hence the Tripath TP2050 power stage chip is a peculiarity. It is highly current-limited such that it is rated at 8Ω in the datasheet (although it is also mentioned that the minimum it can go is 6Ω).
However, there is something interesting about this chip - in stereo mode, it is a pair of bridged amplifiers. Change some resistors and switch it to mono mode, the two bridged outputs combine together to form a 100W into 4Ω amp that is capable of twice the current. Hooray for FET output stage. These numbers also suggest that the max power into 8Ω in this mode is still 50W, but hey extra headroom is always nice.
Now, this thing has my interest because some completed product amp manufacturers misuse those numbers, dunno if it is by their marketing department, or a careless designer. 100W and 50W output powers were quoted with different combinations of number of amp chips and load impedance. You can see that some combinations don't work.
Official specs for this chip is 50W into 8Ω in stereo mode and 100Ω into 4Ω in mono mode. But nothing was mentioned about power into 4Ω in stereo mode.
So a few calculations using Ohm's Law later,
Current limited = fixed current = power proportional to resistance = half of power into 8Ω = 25W
Well, that is veryyyyyyyy small compared to 50W.
For a few seconds it didn't make sense, until I remember the other form of the formula P = I²R. In paralleled mode it has twice the current capacity. Hence four times the power.
Well, the amount of thinking that was carried out would take just a few seconds, but this reminded me that a good amplifier should never be current-limited. And amplifier power ratings are screwed up.
Thursday, March 24, 2011
Tuesday, March 22, 2011
What's the difference between a programmer and a manga artist?
The manga artist chose to torture himself for fun and pride.
Thursday, March 17, 2011
JDS Labs cMoyBB v2.03 Review: Measurements Section
Update: The measurement results for OPA2604 have been deemed invalid. Update on this here.

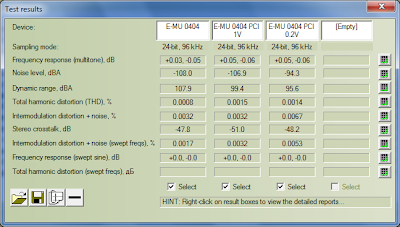

E-MU 0404 PCI - Detailed RMAA Results
The card I used to measure - E-MU 0404 PCI
Note that the first measurement is taken a long while back while the other two are taken on the day the cMoyBB is being measured and with the same setup, minus the cMoyBB of course. Also those voltage values are RMS voltages out from the E-MU 0404 line-out and into the E-MU 0404 line-in, which are the voltages at which the cMoyBB will be outputting for this review. The small things to be done that avoids false bad measurements of the thing to be measured.
For the above measurements the E-MU's output voltage is lowered by software, but counter-checking measurements show no appreciable decrease in performance figures. When feeding the cMoyBB, the E-MU is at max output.
Also note the strangely bad crosstalk numbers. This is because I only measured one channel (the left) and the right channel was duplicated from that one. Ignore those numbers for now. (Although you can also use it to find, not absolute numbers, the relative performance between the different things.) Or, you can look at the stereo graph versions.
The test
The cMoyBB will be tested in four conditions:
1) 1V into no load
2) 1V into 33ohm resistor
3) 0.2V into no load
4) 0.2V into 33ohm resistor
The voltages (in RMS) are chosen as such because 1V is the standard 0dBV line voltage, while 0.2V into 33ohm gives V^2/R = about 1mW of power into the load, and most ear/headphones' sensitivities are rated @ 1mW.
0.2V into no load acts as a control, to see how much of the distortion is caused by the 33ohm load.
Lower impedances require higher current draw, so 33ohm was chosen, and 1V into no load tests for scenarios where high voltage swings but low currents are needed for high-impedance headphones. Even for a 600ohm headphone, 1V into it yields 16.7mW, so unless its sensitivity is in the 80dB's and you have bad hearing, that is more than sufficient.
1V into 33ohm is a scenario you will never see in real life unless you want to destroy your earphones and/or your ear. But I'm including it anyway just to see how the amp handles such a scenario and how much headroom it has. But in the event of a fight-to-the-death between your earphones and your ear, my money goes to the earphones.
cMoyBB v2.03 - Default OPA2227
cMoyBB v2.03 OPA2227 - Detailed RMAA Results
cMoyBB v2.03 OPA2227 - Detailed RMAA Results - 0.2V into 33ohm
Starting off we have the cMoyBB v2.03 with its default op-amp OPA2227. Well, since this review is about the cMoyBB.
No load 1V and 0.2V give the same numbers as E-MU 0404 PCI, which means the performance of this amp is most likely better than what E-MU 0404 PCI can measure.
1V into 33ohm proved too much for the amp to handle with rocketing distortion numbers and huge signs of clipping, but even so it is below the 10% THD that many amp manufacturers like to rate their products at. Not that you should stand for that, but just saying.

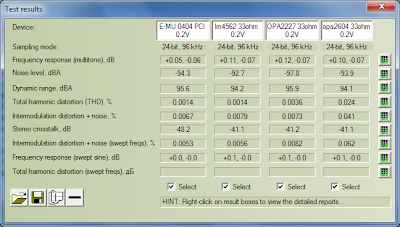

0.2V/1mW into 33ohm, now we see much better numbers. However, compared to 0.2V without any load, we still can see some harmonic distortions that get significant from 10kHz and up. By significant, I mean there are more spikes that are still less than -100dB each in the audible frequency. Maybe you can hear a little bit more "detail", maybe not.
Notes on op-amp rolling
What's the use of the DIP socket if you're not going to roll op-amps?
So far I tried LM4562, LM6172, JRC4580, OPA2132, and OPA2604. LM6172 and JRC4580 have too high DC offset when used in this circuit, while LM4562 have around 20mV, which is high but still usable with care.
If in doubt, use FET-input op-amps.
LM4562
LM4562 - Detailed RMAA Results

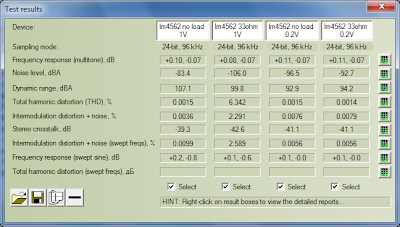

LM4562 - Detailed RMAA Results - 0.2V into 33ohm
There seems to be some problem when measuring LM4562, which resulted in abnormal and fluctuating noise levels, which affected the distortions results to some extent. But you can always see the detailed results.
Unlike the OPA2227, the LM4562 had almost no problem driving the 33ohm load at 0.2V, with numbers close to the E-MU 0404's limits. Well, almost, because as you can see below, there is still some extra spiking at above 20kHz, and between 10 and 20kHz the spikes are taller than the EMU's, albeit by a few slightly audible dB's.
Known for its accuracy and price, the LM4562 would have been an ideal drop-in replacement in the cMoyBB if not for its DC offset, and some noise issues and frequency spikes that might have been caused by the noise. Needs to be retested when possible. Granted, it was not in a proper circuit for it anyway. But still, overall performance, minus the DC offset, is excellent.
OPA2132
OPA2132 - Detailed RMAA Results
OPA2132 - Detailed RMAA Results - 0.2V into 33ohm
Burr-Brown's "audio op-amp" pays a visit. "Audio grade" means bad performance on the whole, so there was not much expectation for it. On the other hand, OPA2227 is said to suck too, so there is hope for OPA2132 after all.

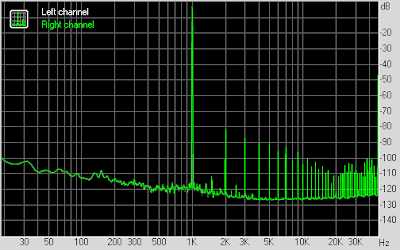

The distortion pattern from 10kHz onwards look similar to the OPA2227's, only smaller in magnitude. However between 1kHz to 10kHz there is much more lower-order harmonic distortion. Some may like the sound, some not, but in terms of accuracy, OPA2227 would come out ahead of the two.
OPA2604
Update: The measurement results for OPA2604 have been deemed invalid. Update on this here.
OPA2604 - Detailed RMAA Results

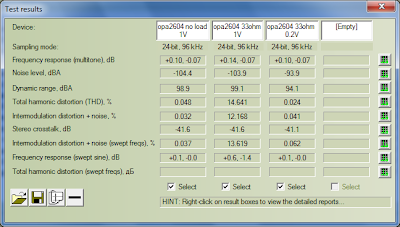

OPA2604 - Detailed RMAA Results - 0.2V into 33ohm
